Heartway Spring Tilt-N-Space Wheelchair

The Heartway Spring Tilt-N-Space Manual Wheelchair delivers advanced positioning, lightweight performance, and dependable everyday mobility for users who require enhanced pressure relief and postural support. Built with a durable yet lightweight aluminum frame, the Spring weighs just 84 lbs while supporting up to 300 lbs, making it a strong and reliable rehab wheelchair solution.

Designed with a manual Tilt-N-Space seat that reclines up to 30°, the Heartway Spring helps redistribute pressure, improve comfort, and support proper positioning throughout the day. This feature is especially beneficial for individuals who require additional pressure management or who spend extended periods seated.

The ergonomic rehab seat is available in 18” and 22” widths with a supportive 4” cushion for enhanced comfort. Quick-release 24” rear drive wheels simplify transport and storage, while solid, flat-free tires ensure low-maintenance reliability. With elevating leg rests, a 39” turning radius, and smooth 8” front casters, the Spring is ideal for rehabilitation centers, long-term care facilities, and home use.

Key Features & Benefits

Manual Tilt-N-Space Recline (Up to 30°) – Redistributes pressure, improves posture, and enhances comfort for extended sitting
Lightweight Aluminum Frame (84 lbs) – Durable yet manageable design supporting up to 300 lbs
Ergonomic Rehab Seat Options – Available in 18” and 22” widths with a 4” supportive cushion
24” Quick-Release Rear Wheels – Remove drive wheels easily for convenient transport and storage
Solid, Low-Maintenance Tires – Flat-free reliability for consistent indoor and facility use
Standard Elevating Leg Rests – Provides enhanced lower-extremity support and positioning flexibility
Smooth Maneuverability – 39” turning radius and 8” front casters for controlled indoor navigation
Pressure & Posture Support Design – Ideal for rehab, long-term care, and home mobility needs
Industrial Plastic Rims – Durable construction for daily performance
Sleek Silver Finish – Clean, professional look suitable for clinical or home environments

Heartway Spring Tilt N Space Wheelchair – Image 6

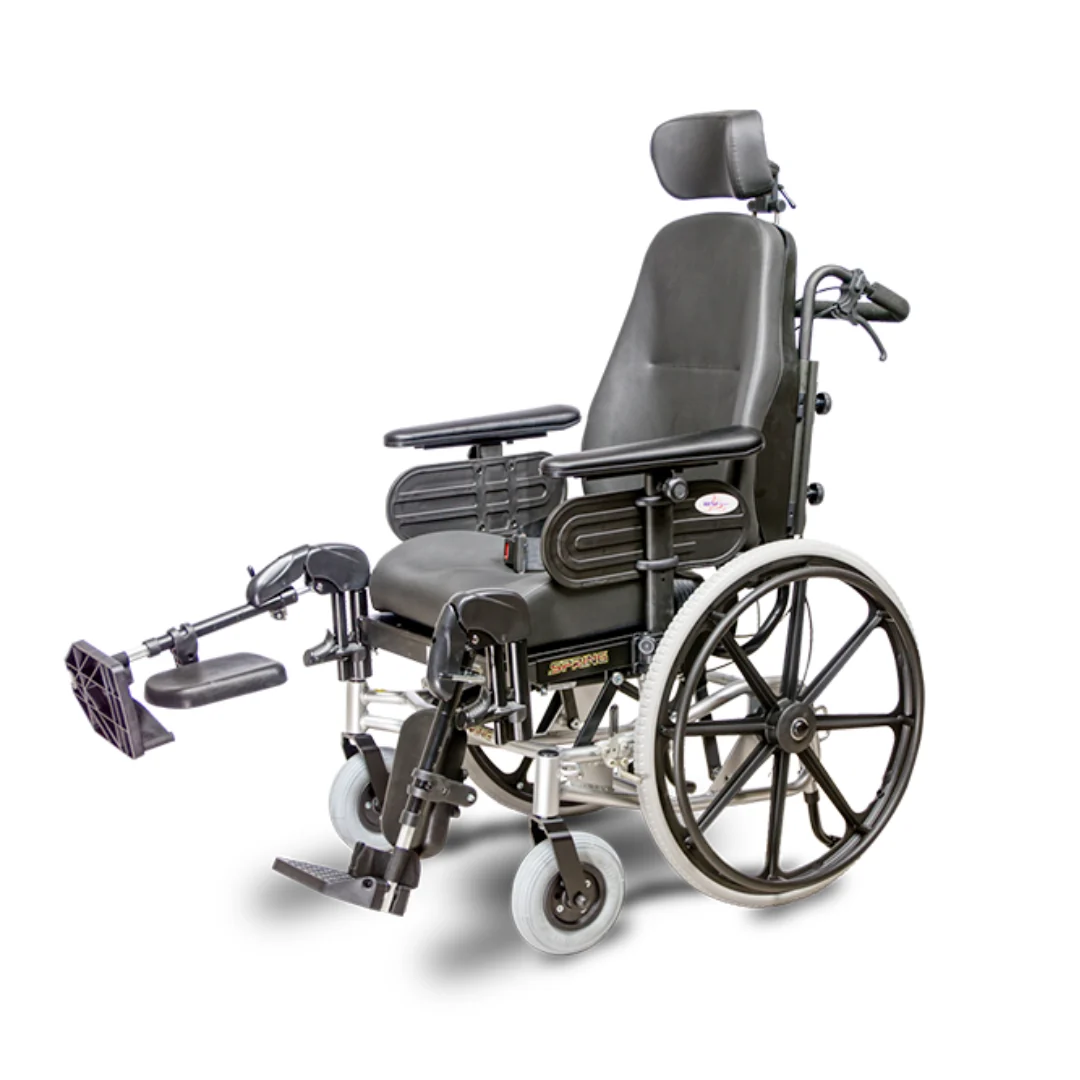

Heartway Spring Tilt N Space Wheelchair – Main Image

Heartway Spring Tilt N Space Wheelchair – Image 4

Heartway Spring Tilt N Space Wheelchair – Image 3

Heartway Spring Tilt N Space Wheelchair – Image 2

Heartway Spring Tilt N Space Wheelchair – Image 1

Specifications

Wheelchair Specifications

Overall Length	45"
Overall Width	27" (18" Seat Width) 31" (22" Seat Width)
Seatback Height	22" (18" Seat Widths) 24" (22" Seat Width)
Legroom (Floorboard Length × Width)	16" – 20"
Deck Height (Floorboard to Floor)	4" – 8"
Turning Radius	39"
Product Weight	84 lb
Seat Type	Rehab Seat
Seat Width Options	18" / 22"
Seat Cushion Thickness	4"
Seat Height – Cushion to Deck	16"
Seat Height – Cushion to Floor	22"
Tire Type	Solid Tires
Rear Rim Type	Industrial Plastic
Front Rim Type	Industrial Plastic
Rear Wheel Diameter	24"
Rear Tire Width	1-3/8"
Front Wheel Diameter	8"
Front Tire Width	2"
Maximum Climbing Angle	6°
Weight Capacity	300 lb
Color	Silver
Elevating Leg Rests	Standard

Videos

Downloads

Download The User Manual

FAQs

Heartway Spring Tilt-N-Space Manual Wheelchair – Frequently Asked Questions

What is a Tilt-N-Space wheelchair?

A Tilt-N-Space wheelchair allows the entire seat and backrest to tilt backward as one unit, rather than reclining the back independently. The Heartway Spring tilts up to 30 degrees, helping redistribute pressure, improve posture, and enhance comfort for extended sitting.

Who is this wheelchair best suited for?

The Heartway Spring is ideal for:

Individuals who require pressure redistribution
Users who need postural support
Rehabilitation or long-term care patients
Caregiver-assisted mobility situations

What is the weight capacity?

This wheelchair supports users up to 300 lbs.

How much does the chair weigh?

The Heartway Spring weighs approximately 84 lbs, offering a strong yet relatively lightweight aluminum frame for a tilt wheelchair.

What seat sizes are available?

The ergonomic rehab seat is available in:

18-inch width
22-inch width

The seat cushion thickness is 4 inches for added comfort and support.

Does it have quick-release wheels?

Yes. The chair features 24-inch quick-release rear wheels, making transport and storage easier when needed.

Are the tires air-filled or solid?

The Heartway Spring comes with solid tires, which are flat-free and low maintenance.

Does it include leg rests?

Yes. Elevating leg rests are standard, allowing for improved positioning and lower-extremity support.

What is the turning radius?

The wheelchair has a 39-inch turning radius, making it suitable for maneuvering in indoor and clinical environments.

Is this wheelchair self-propelled?

Yes. With its 24” rear wheels, users who have sufficient upper body strength can self-propel. However, it is also well-suited for caregiver-assisted use.

Is this wheelchair good for long-term seating?

Yes. The Tilt-N-Space function, 4” cushion, and ergonomic design make it appropriate for longer seating periods when proper clinical guidance is followed.

What environments is this wheelchair designed for?

The Heartway Spring is ideal for:

Skilled nursing facilities
Rehabilitation centers
Long-term care environments
Home use with caregiver support
